的主要用途与简单/Brief Introduction：

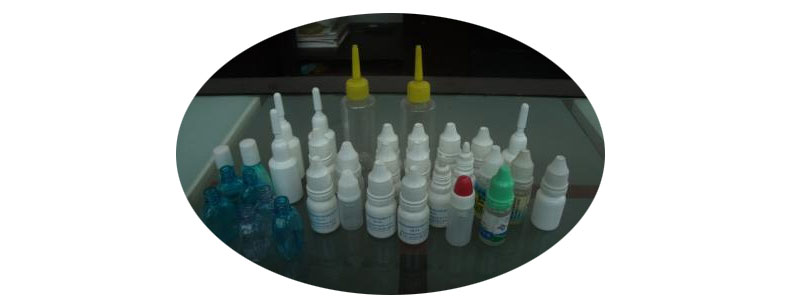

滤油机适合于2-30ML多种金属材质的半圆扁形金属或夹层玻璃瓶子的眼药粉分装、电子器件烟油等小极量分装.滤油机由高精密度凸轮机构轴量程机购供给量程等分盘追踪地位上塞上盖;变快度凸轮机构轴转动供给旋盖头的升降系统;恒发动机功率旋盖;消化吸收泵记量检定分装;触控屏管控.无瓶不分装,不加以内塞,外盖.具追踪地位精准度,转动保持稳定,保障饮料瓶盖,记量检定准.运作简洁明了等优点有哪些。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

作用/Characteristic：

◆微手机制定、装量正确、操作流程便于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆机箱发动机转速可实施无极变速定频调速器。the mainframe running speed is stepless frequency conversion.◆产生量自功降钙素原检测把控。the product quantity can be controlled. ◆三种错误提示卡性能(如低大气压。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑智能停电工作，对某一轨道组件诞生间断无装罐、无内塞问题可电脑智能停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技木指标/Main Technical Parameters：

符合金桥铜业跨接线的截面积大小Filling Volume	2-30ml
生产销售效率Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装设备精确度Filling Precision	≤±1%
电源线 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自动化上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
工作效率 Power	2.0 kw
刷卡机重量Weight	550 kg
内部结构尺寸Dimension	1800*1000*1500mm
